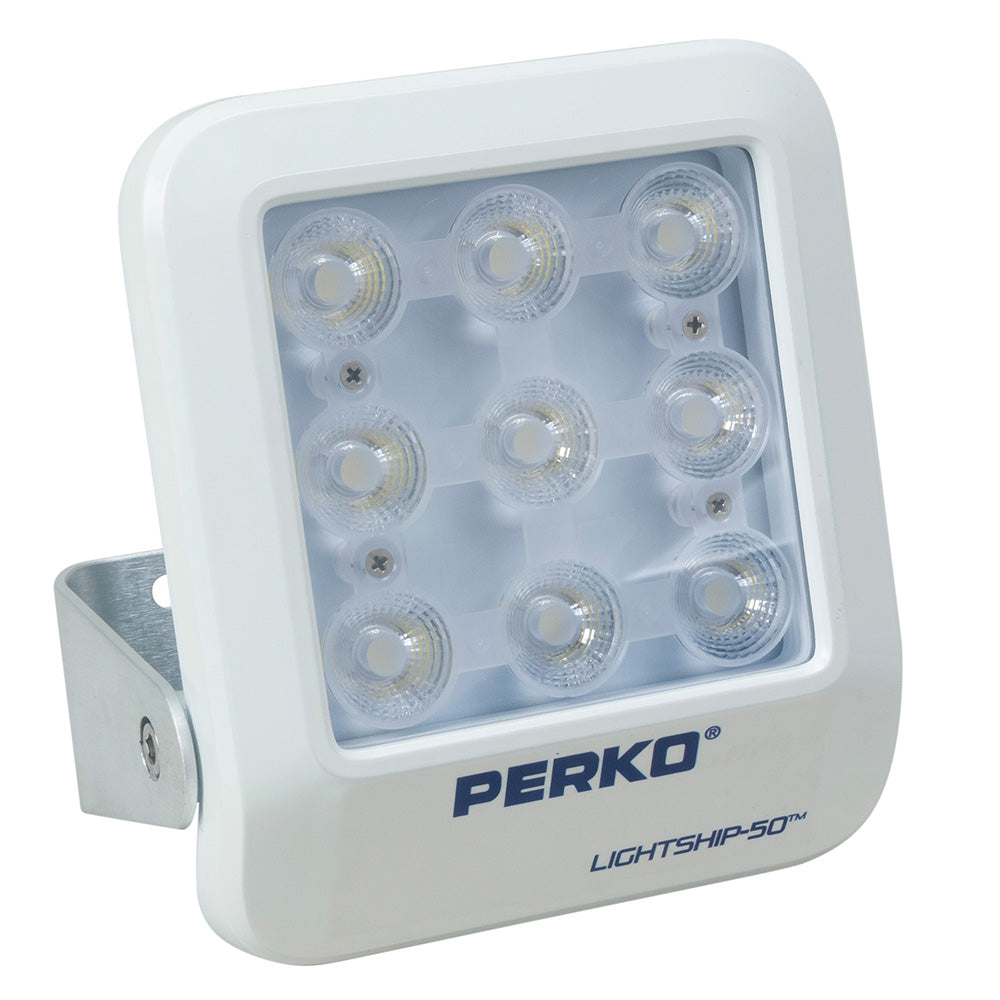

Perko Lightship 50 LED High Performance Floodlight - 12/24V - White [1643050F0W]

50 LED High Performance Floodlight - 12/24V - White

This Perko floodlight has 7,500 lumens and 5000K neutral white optics.

Physical Dimensions & Weight

• Dimensions (including bracket): 7.0" Width × 5.5" Height × 1.9" Depth

• Weight: 2.3 lbs

• Housing Finish: White

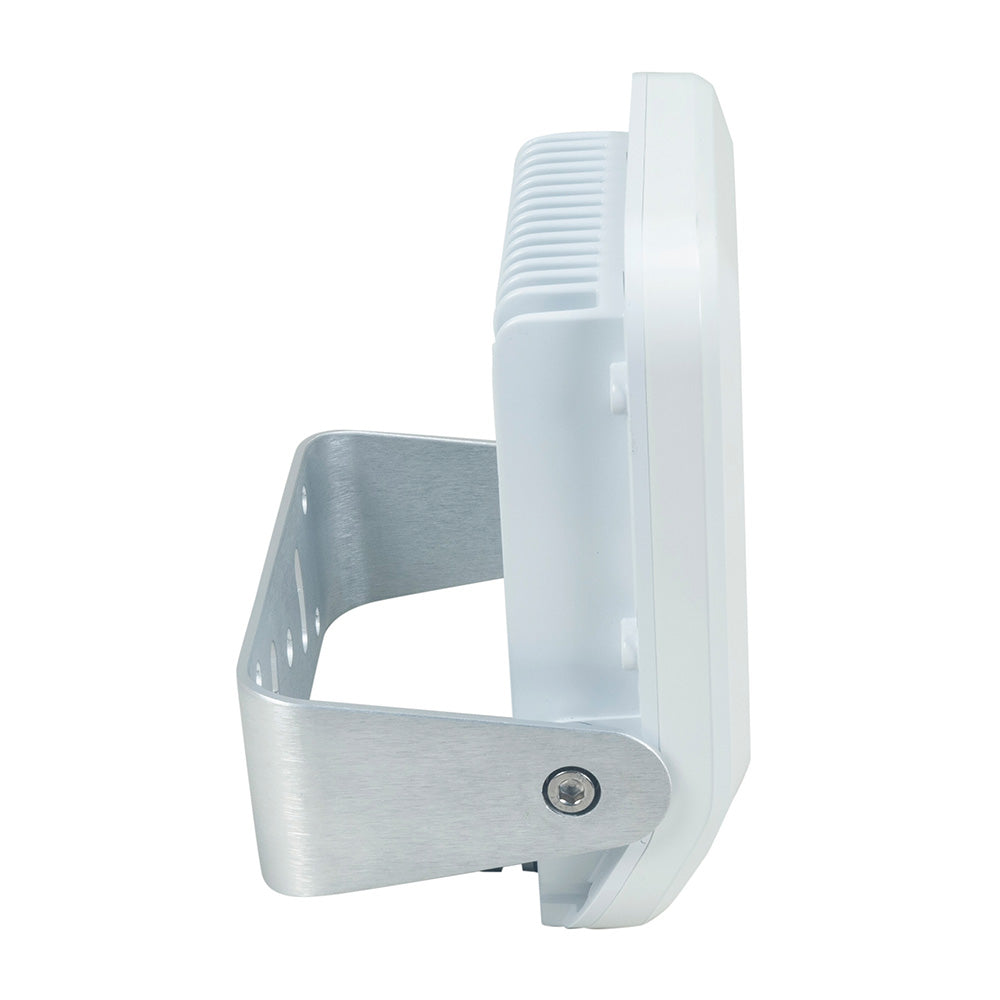

• Mounting Bracket: Includes heavy-duty marine-grade aluminum mounting bracket

Optical & Performance Specifications

• Light Output (Lumens): Approx. 7,500 Lumens at 12 VDC

• Color Temperature (CCT): 5000K Neutral White Optics

• Beam Angle: 80° Wide Flood Pattern

• Operating Voltage: 12 VDC, 24 VDC, 32 VDC (Auto-detecting)

• Current Draw:

  • 3.8 Amps at 12 VDC

  • 1.9 Amps at 24 VDC

• Total Power Consumption: 50 Watts at 12 VDC

Environmental & Durability Ratings

• Water Resistance: IP68 Certified

• Operating Temperature Range: -40°C to 55°C (-40°F to 130°F)

• Vibration Resistance: MIL-STD-202G

• Country of Origin: Designed and assembled in the USA

Warranties

• Unit Warranty: 5-Year Limited Warranty

• Light Engine Assembly: 10-Year Limited Warranty

Diagrams & Technical Documentation

For complete mounting bracket dimensions, wire gauge requirements, and exploded assembly views:

• Product Series Specification & Dimensional Flyer: Perko Lightship 50 Series LED Bulletin PDF

• Official Manufacturer Catalog Page: Perko Lightship 50 Catalog Listing

Specifications:

• LED: Yes
• Box Dimensions: 3"H x 7"W x 9"L WT: 2.9 lbs


This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
