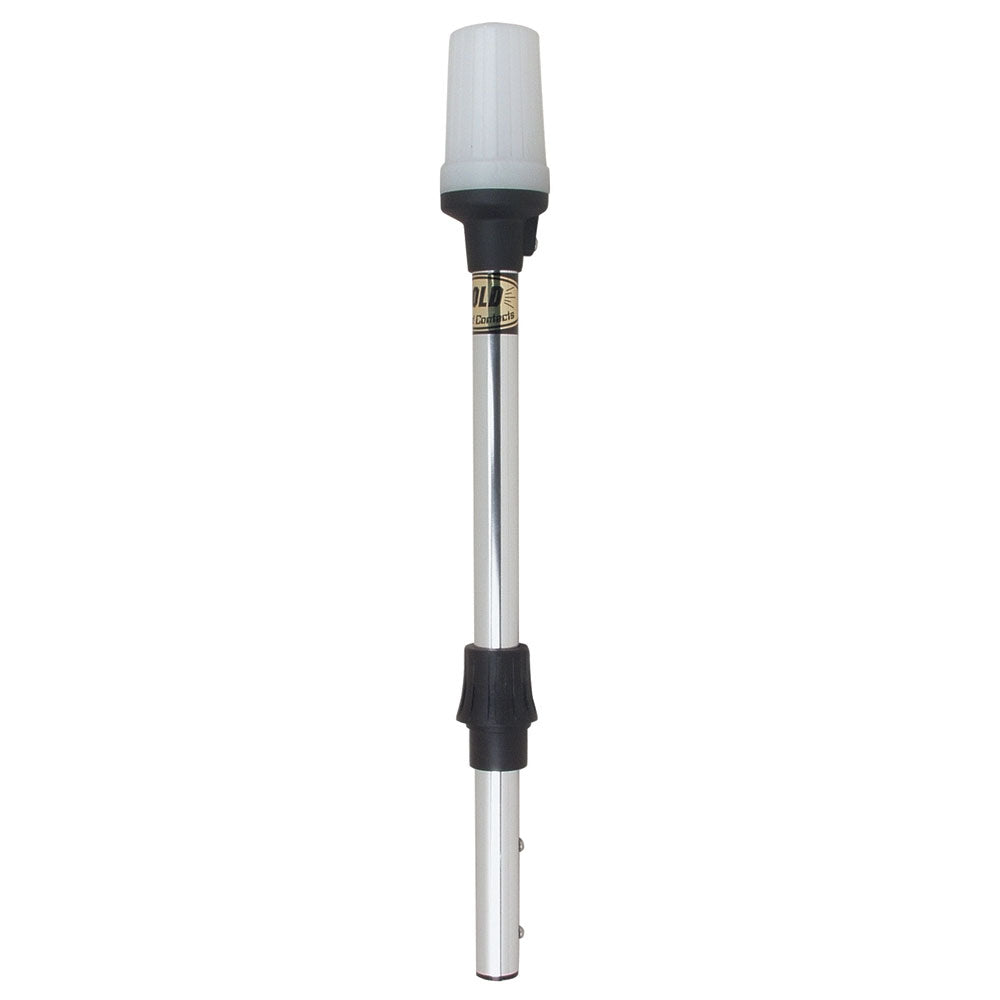

Perko Alpha Series 36" White All Round Light [1400DP4CHR]

Electrical & Performance Specifications

• Catalog Figure Series: Fig. 1040 / 1400 Series (Alpha Series Universal Replacement Light)

• Retail Package Part Number: 1400DP4CHR

• Visibility Range: 2 Nautical Miles (USCG 2nm)

• Visibility Angle: 360° All-Round Visibility

• Operating Voltage: 12V DC (Incandescent Bulb Included)

• Power Consumption: 11 Watts

• Current Draw: 0.94 Amps

• Globe/Lens: White Translucent Frosted Globe (provides all-round light visibility even when not horizontally level, plus limited cockpit illumination)

• Vessel Certification: Certified for use on sail or power-driven vessels under 20 meters (65.6 ft) in length

Physical Measurements & Construction

• Overall Length: 36 Inches (nominal length including globe)

• Pole Outer Diameter: 3/4" Anodized Aluminum Tubing

• Pole Rake: 0° Rake (Vertical) / Adjustable depending on base selection

• Top & Collar Finish: Black Polymer Top with Interchangeable Collars

• Mounting Style: Stow-A-Way Plug-In Type (2-Pin)

Included Adapters & Base Compatibility

This universal replacement light comes equipped with two distinct collar attachments to fit various OEM and aftermarket bases:

• Locking Collar (2-Pin): Fits Perko Base Models 1045, 1046, 1047, 1059, and 1060

• Large Threaded Collar (2-Pin): Fits Perko Base Model 1048

• Multiple Screw Hole Positions: Selective use of 2 screw holes or collars allows adaptation to various boat configurations and manufacturer base styles.

Diagrams & Documentation

For base pin layout schematics, wiring diagrams, and official catalog resources:

• Official Product Page: Perko Alpha Series Universal Replacement Pole Light Catalog Page
