Elbow thru hull, 1-1-8" hose barb, small flange

Elbow thru hull, 1-1-8" hose barb, small flange

THM 1292

Regular price$12.95
Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

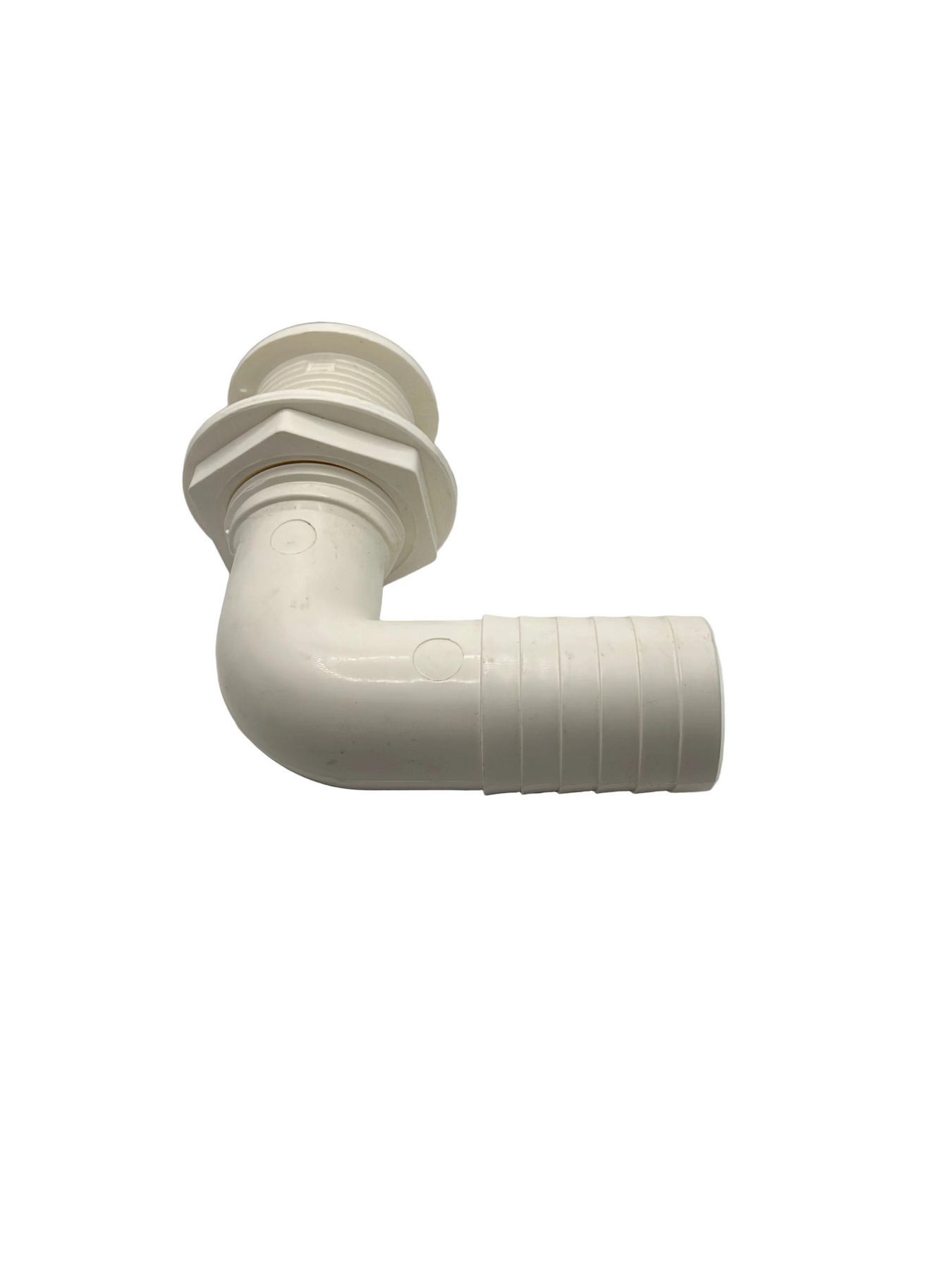

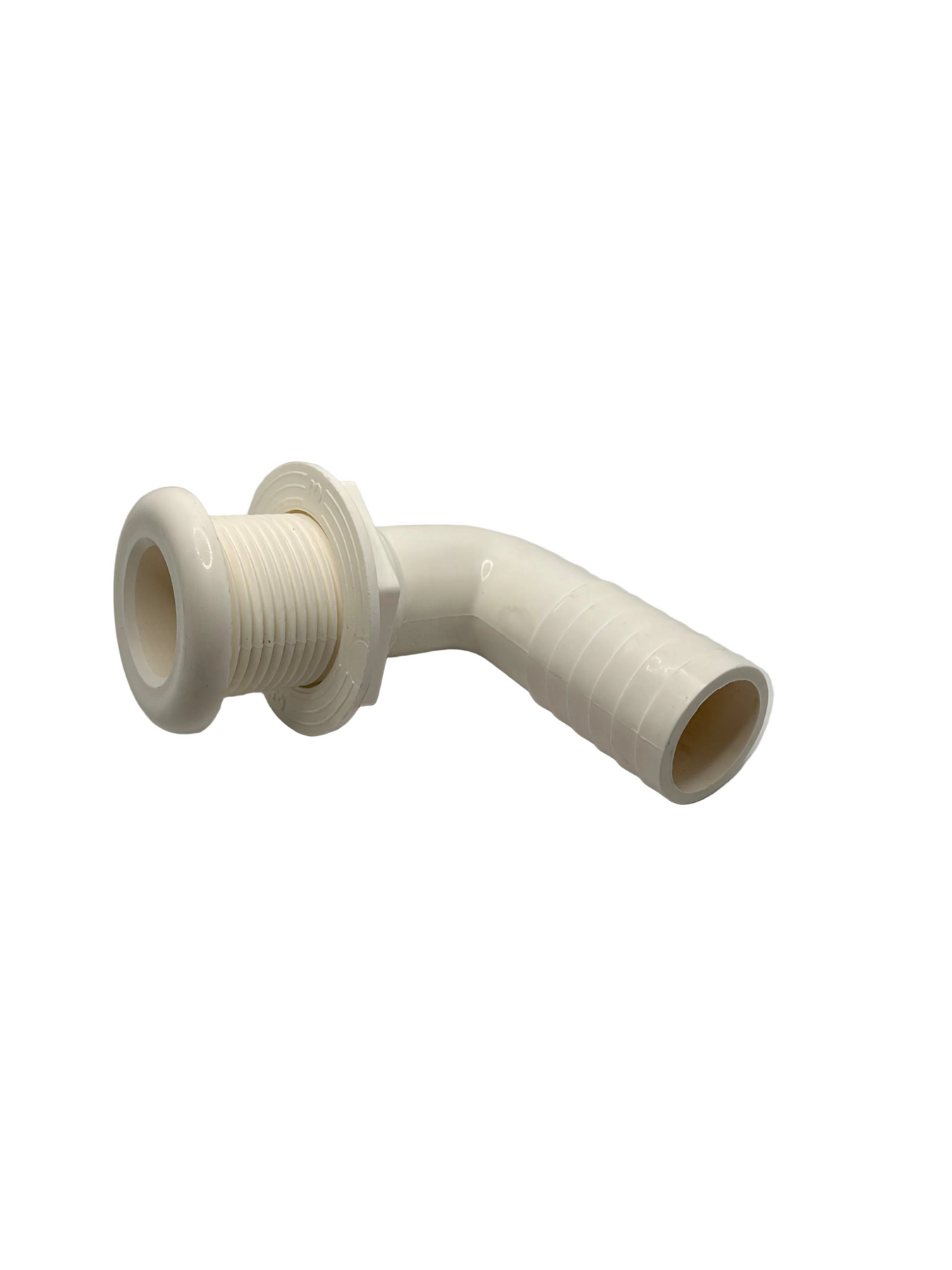

This white thru hull valve has a smaller mushroom head than most to fit in tight spots. Molded of UV stabilized poly material. The hose barb fits 1-1/8" ID marine hose (standard for many bilge pumps) and has room for double hose clamps. Threads are 1-1/2" long, fits up to 1-1/8" hull. Includes 2-1/8" diameter mounting nut.

Made in the USA !
elbow thru hull fitting
A - Head is 1-7/8"" diameter
B - Overall depth is 3-1/2"
C - Threads are 1-1/2" long
D - Fits 1-1/8" ID hose
E - Requires a 1-3/8" mounting hole.
Plastic thru hulls should only be used above the waterline.  For below the waterline use, contact us with your specifics and we will find the best thru hull for your application!
