Perko 1-1/8" Thru-Hull Fitting f/Hose Narrow Flange - Plastic [0301DP6A]
RBP-64705
- Low stock - 4 items left
- Inventory on the way

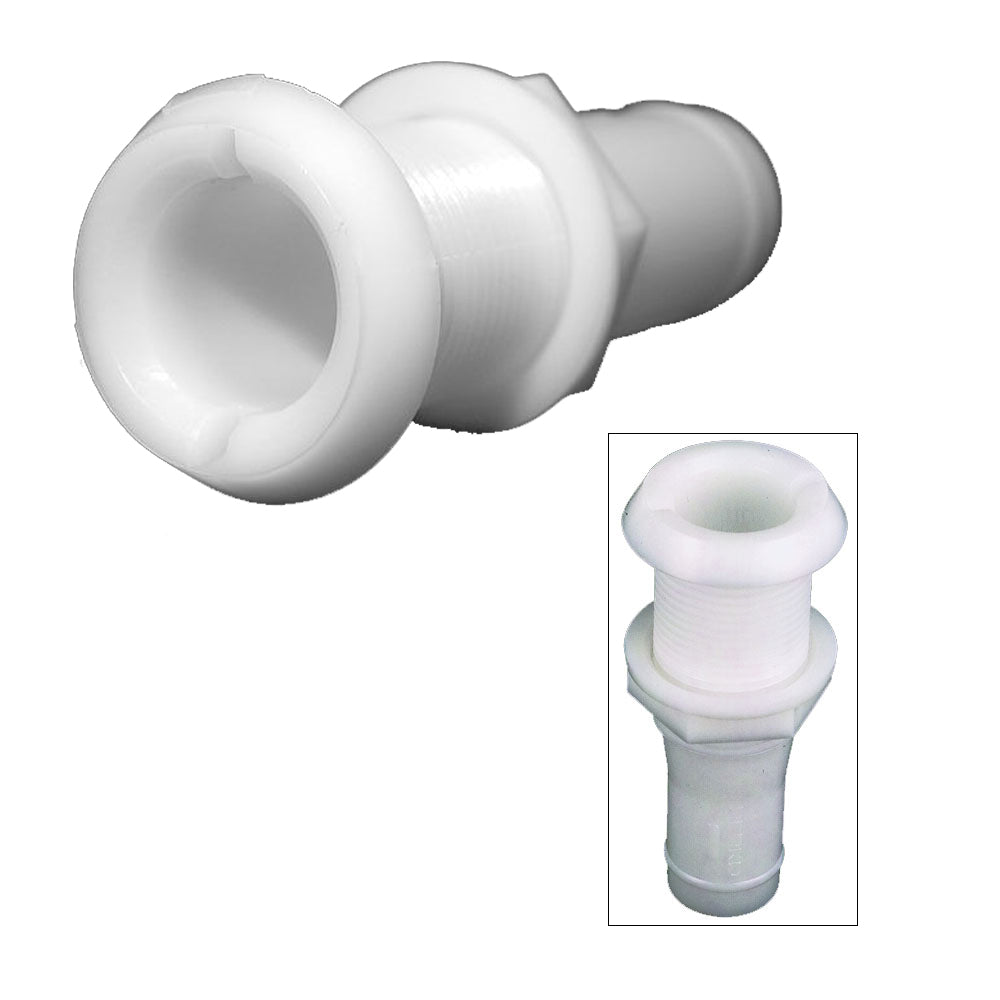

1-1/8" Thru-Hull Fitting for Hose Narrow Flange - Plastic
Measurements & Dimensions
-
Hose Size: 1-1/8 inches (28.57 mm)
-
Mounting Hole Diameter: 1-5/16 inches (33.33 mm)
-
Maximum Hull Thickness: 1-1/2 inches (38.10 mm)
-
Flange Outer Diameter (O.D.): 1-7/8 inches (47.62 mm)
-
Shipping Package Dimensions & Weight: 2 inches H x 2 inches W x 7 inches L; Weight: 0.12 lbs
Specifications & Materials
-
Model / MPN: 0301DP6A (Perko Figure No. 0301 Series)
-
Material Construction: Molded white polymer / plastic
-
Flange Type: Narrow flange design
-
Application: Marine plumbing and ventilation thru-hull connection for use with hose
Specifications:
- Box Dimensions: 2"H x 2"W x 7"L WT: 0.12 lbs
