Perko 1-1/4" IPS Intake Strainer Bronze Made in the USA [0493007PLB]

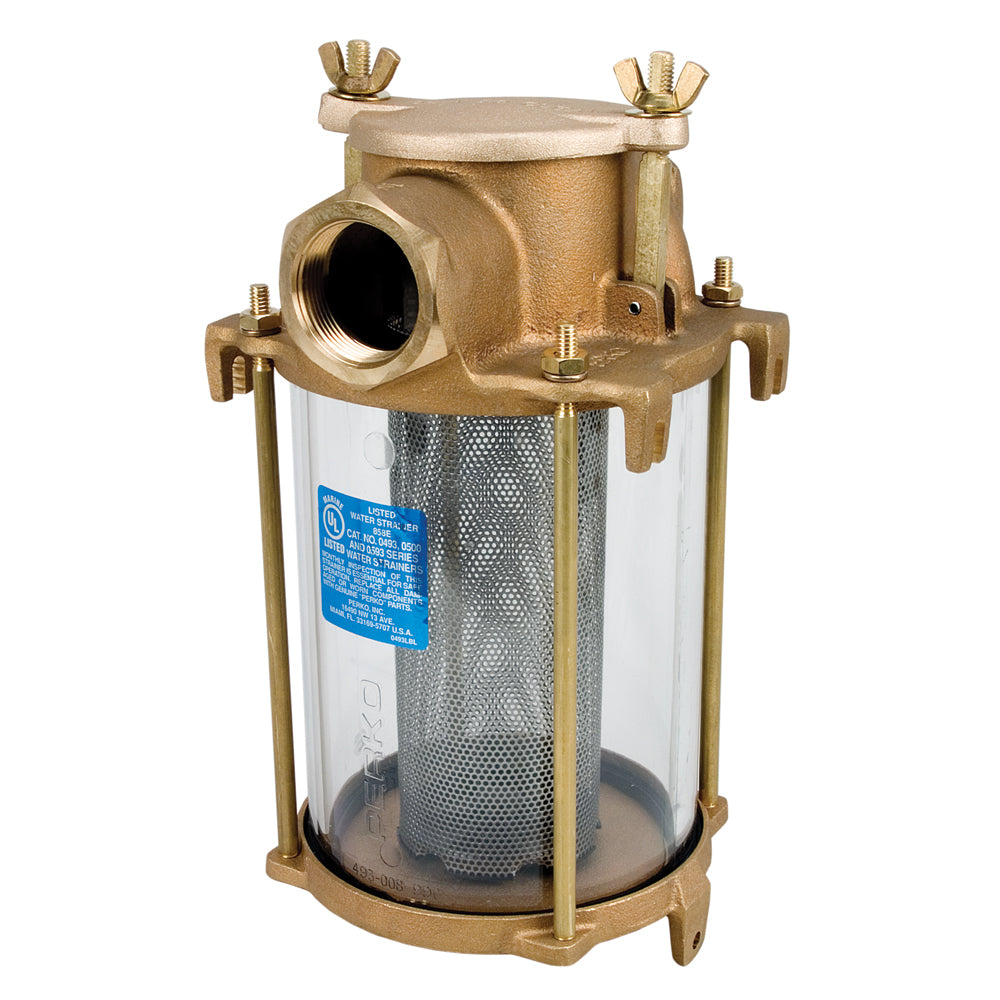

Perko 1-1/4" IPS Intake Strainer Bronze
PERKO Intake Strainer are designed for easy installation and cleaning.
Features include mounting lugs cast into both sides to assure universal mounting, four outside tie rods and a 316 stainless steel strainer basket to minimize electrolysis. Screen hole diameter .077 inches, 46% open area. Hinged lugs for the cast bronze cover permit easy removal and cleaning of the strainer basket. A drain plug in the bottom casting is provided for easily removing sediment and draining for winterizing.

Technical Measurements & Dimensions

• Pipe Size: 1-1/4 inches (IPS)

• Overall Height: 10 inches

• Overall Width: 5-1/2 inches

• Cylinder Dimensions: 4-1/2 inches (Diameter) × 6 inches (Height)

• Strainer Basket Dimensions: 2-5/8 inches (Diameter) × 6-1/4 inches (Height)

• Open Area to Pipe Size Ratio: 13.1

• Screen Hole Diameter: 0.077 inches (approx. 46% open area)

• Shipping Weight: Approx. 7.9 lbs

Materials & Construction Features

• Construction Material: Cast bronze body designed for heavy-duty marine service and long-term durability.

• Strainer Basket: 316 Stainless Steel basket engineered to minimize electrolysis.

• Mounting Lugs: Cast directly into both sides to allow secure, universal mounting options.

• Frame Design: Utilizes four outside tie rods and a hinged cast bronze cover with swing lugs for quick, easy removal and cleaning of the internal basket.

• Drain Plug: Included in the bottom casting to make clearing out trapped sediment and winterizing straightforward.

• Maintenance Note: Spare parts for this model are not interchangeable with the Perko 0593 Flushing Strainer. Spare gasket kit model: 0493DP799M (or 99R).
