Attwood SWIVL-EZE LockN-Pin 3/4" Pedestal Kit 13" Post 7" x 7" Stainless Steel Base Plate Threaded [977339-T]
RBP-79601
- Low stock - 7 items left
- Inventory on the way

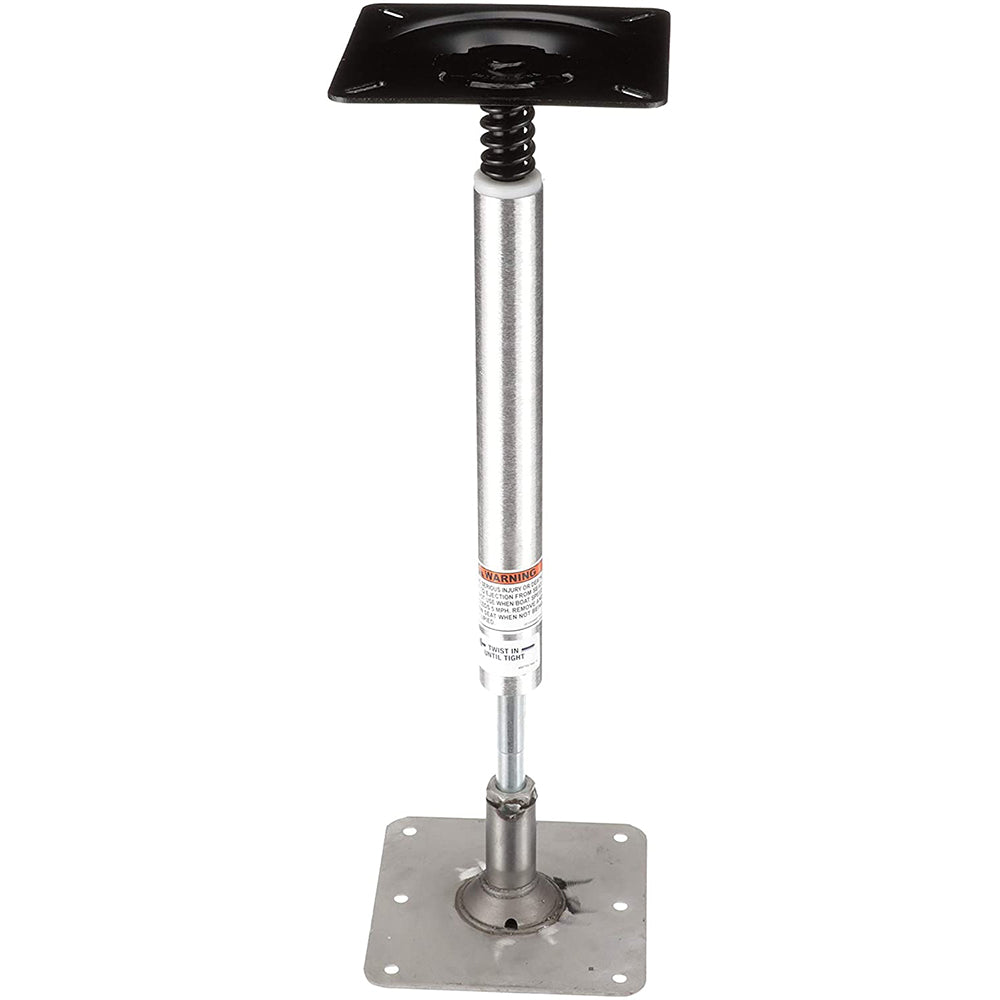

SWIVL-EZE Lock'N-Pin 3/4" Pedestal Kit 13" Post 7" x 7" Stainless Steel Base Plate Threaded
Physical Measurements & Dimensions
-
Base Plate Footprint: 7 inches × 7 inches (17.8 cm × 17.8 cm)
-
Post Height: 13 inches (33.0 cm)
-
Pin / Shaft Diameter: 3/4 inch (1.9 cm) threaded configuration
-
Seat Mount Dimension: Standard 5" × 5" seat bolt pattern
-
Required Deck Hole Size: 2-inch diameter center deck cutout (for socket protrusion under deck)
-
Assembled Weight: 7.4 lbs (3.36 kg)
-
Shipping Package Dimensions: 6 Cube (6" × 6" × 6", boxed weight ~7.4 lbs)
Technical Specifications & Features
-
Base Plate Material: Polished 304 Stainless Steel (7" × 7" square)
-
Seat Mount Finish: Heavy-duty black E-coated corrosion-resistant steel with 360-degree rotation swivel
-
Post Construction: High-strength steel with zinc/E-coat finish and threaded end-pin
-
Pin Lock Type: Threaded Lock'N-Pin system with spring-loaded retainer to prevent accidental post disconnection
-
ABYC Certification: Meets ABYC Standard Class B seating (for speeds up to 5 mph / trolling seat position)
