Attwood Drop-In Hidden Horn w/ Black and White Covers [11478-7]
RBP-69873
- Low stock - 6 items left
- Inventory on the way

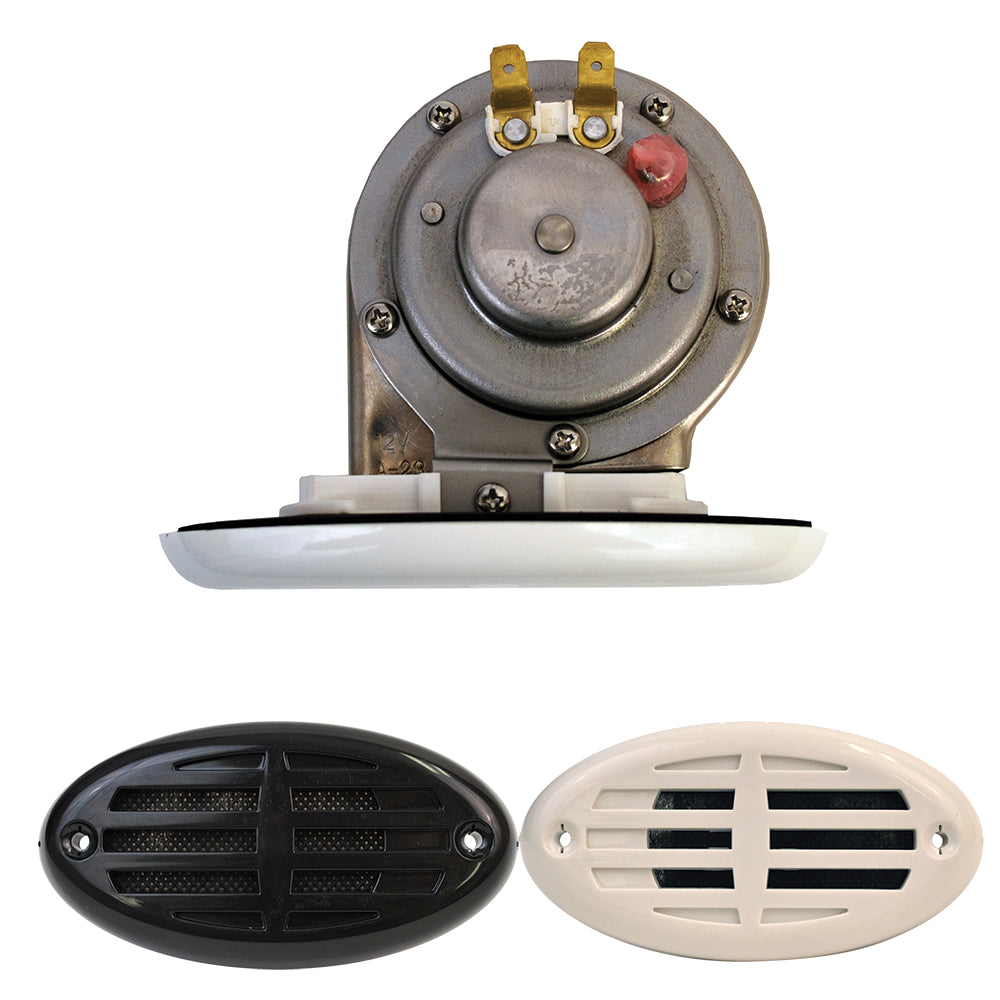

Drop-In Hidden Horn w/ Black and White Covers
Low profile drop in horn with grills. Design allows easy installation. Easily retrofitted. Comes with black and white cover. 12V. Designed for ABYC standards for boats up to 20 meters.
Physical Measurements & Installation Dimensions
-
Grille / Cover Outer Dimensions: 4-1/2 inches L × 2-1/2 inches W (11.4 cm L × 6.4 cm W)
-
Grille Profile Projection: Stands less than 1/2 inch (1.27 cm) above deck surface
-
Required Deck Installation Cutout: 3-1/4 inches L × 1-3/4 inches W rectangular hole (8.26 cm L × 4.45 cm W)
-
Under-Deck Clearance Depth: 3 inches (7.62 cm) clearance depth below deck
-
Mounting Hole Centers: Fastens with two #8 flat-head screws
-
Item Weight: 0.85 lbs (13.6 oz / 0.386 kg)
-
Box Shipping Dimensions: 5" H × 8" W × 8" L (0.85 lbs)
Technical Specifications & Electrical Features
-
Operating Voltage: 12V DC
-
Sound Level Output: Meets USCG and ABYC A-23 standards for vessels up to 20 meters (65.6 feet) in length (dB rating: 105 dB at 1 meter)
-
Current Draw: 4 Amps max
-
Recommended Fuse Size: 5-Amp inline fuse
-
Grille Covers Included: Includes both Snap-On Black and Snap-On White weather-resistant ABS plastic grille covers
-
Housing Construction: Sealed, non-corrosive housing built for freshwater and saltwater marine environments
