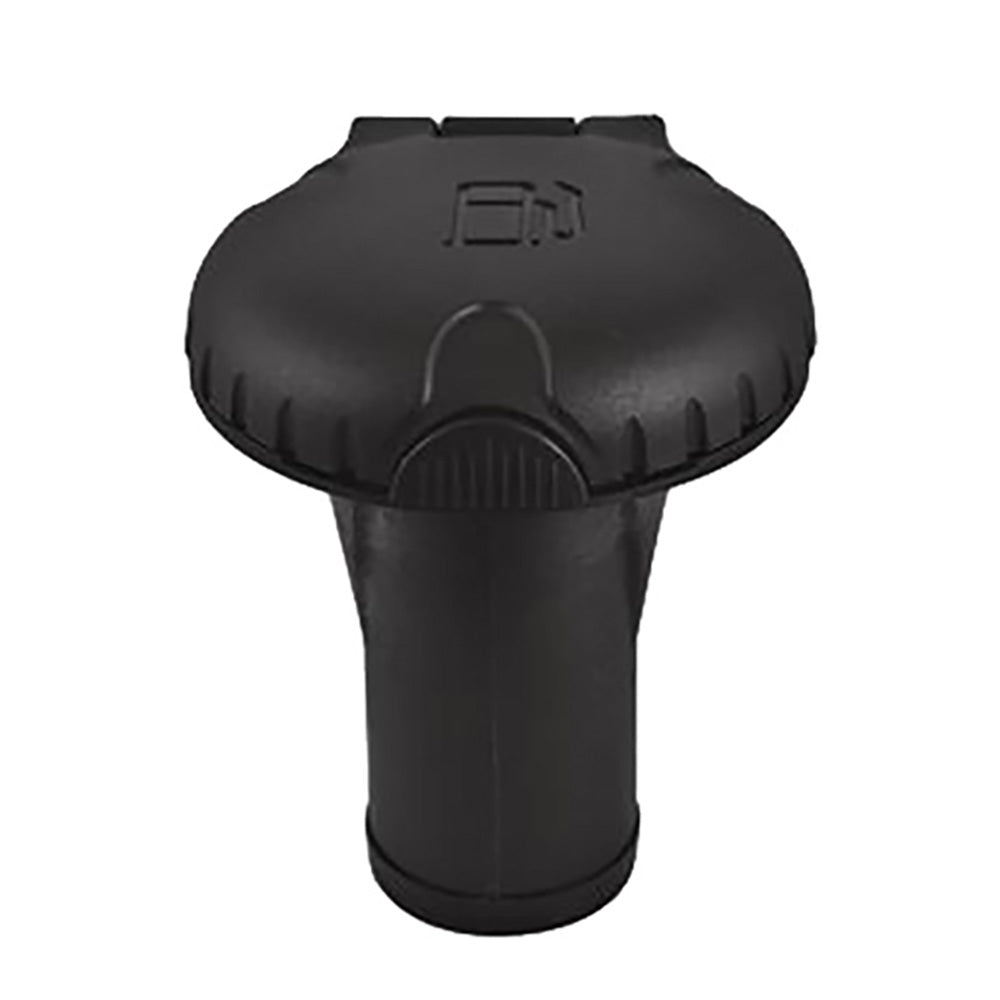

Attwood Deck Fills f/Pressure Relief Systems - Straight Body - Scalloped Black Plastic Cap [99DFPVSB1S]
RBP-99061
- Low stock - 5 items left
- Inventory on the way
Deck Fills for Pressure Relief Systems - Straight Body - Scalloped Black Plastic Cap
Attwood's Pressure Relief Systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood pressure relief systems are designed to ensure water does not enter the fuel tank and are compatible with Jerry Can and marine nozzle refueling.
Specifications & Measurements
-
Hose Compatibility: Fits 1-1/2 inch fill hose and 5/8 inch vent hose.
-
Fuel Flow Rate: Accommodates automatic nozzle shutoff at 4 to 18 GPM.
-
Pressure Ratings: Overpressure relief safety valves release pressure above 1 psi; features dual 1 psi diurnal emission control.
-
Material & Finish: Durable Black Composite finish with a scalloped plastic cap.
-
Product Weight: 0.6 lbs
Key Features
-
Vacuum Valves: Triple high-flow vacuum valves ensure maximum make-up airflow to replace consumed fuel while preventing vapor lock or excessive vacuum restriction.
-
Sealing & Safety: Hinged audible click cap confirms secure closure to meet EPA requirements. Designed and tested to prevent water intrusion into the fuel system.
-
Fuel Compatibility: Fully compatible with ethanol-blended fuels (E10).
-
Compliance Standards: EPA / CARB Certified; meets CARB 13 CCR 2235, ISO 13331 nozzle mating/retention standards, ISO 10088, and CE compliance. Essential component of VaporTec and SecureStop systems.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Quick Guide (pdf)
