Attwood Deck Fill f/Carbon Canister System - Angled Body Scalloped Chrome Cap [99DFCCAZ1S]
RBP-98337
- Low stock - 7 items left
- Inventory on the way

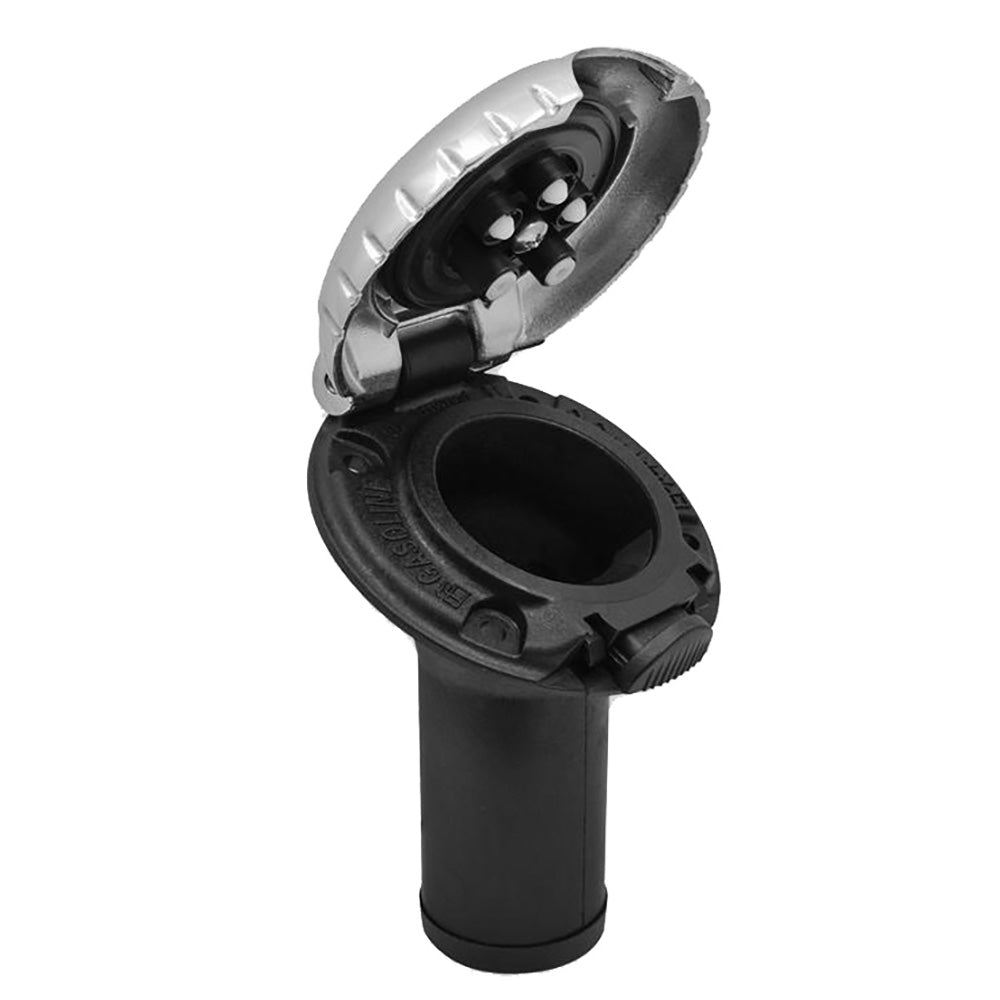

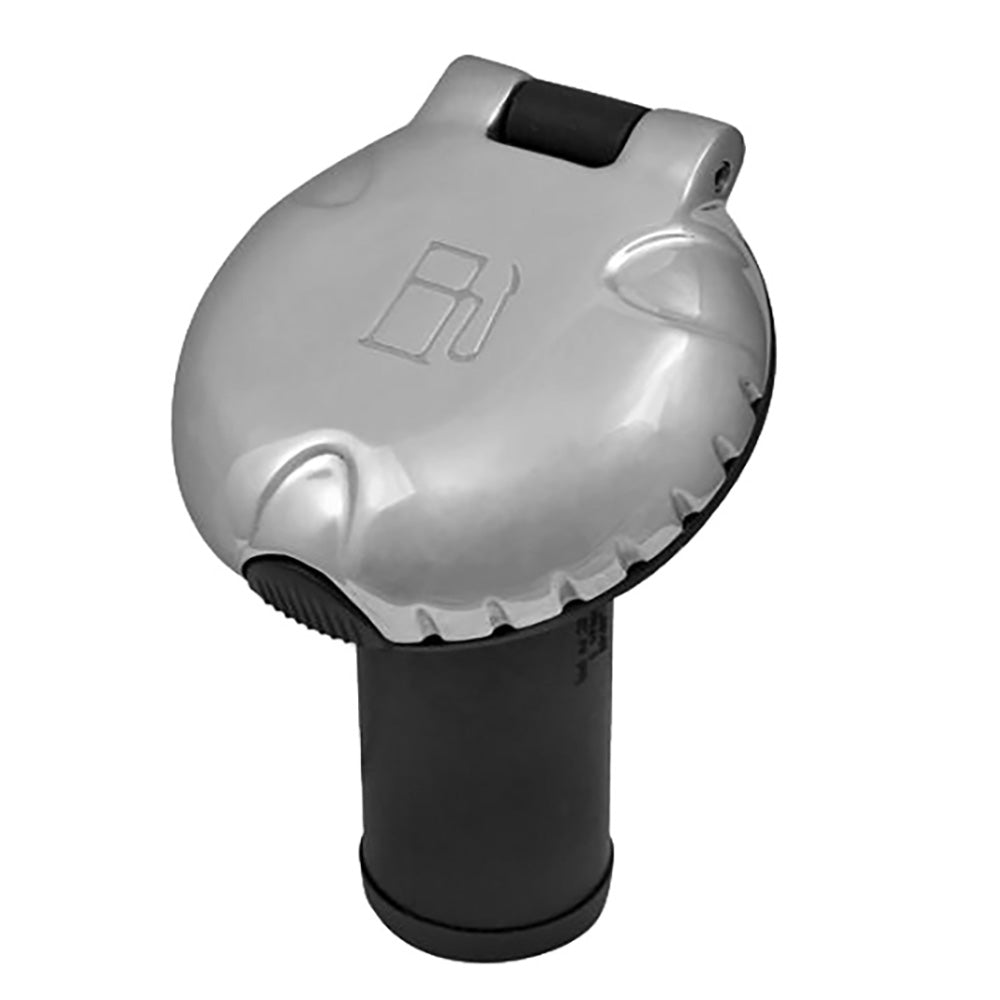

Deck Fill for Carbon Canister System - Angled Body & Scalloped Chrome Cap
Pressure relief systems are designed with automatic diurnal emission control and overpressure relief safety valves built into the cap of the fill. The overpressure relief safety valves are engineered to release pressure above 1 psi. The high-flow vacuum valves allow fresh air to enter the fuel tank to replace the fuel being consumed by the engine. Other components of a pressure relief system are designed to ensure the tank fills to the proper level every time without spit-back or well-back.
Product Specifications & Technical Data
-
Material Composition: Angled marine-grade body with a scalloped chrome finish and a hinged audible-click cap.
-
System Integration: Engineered specifically for vessels equipped with carbon canister emission control systems.
-
Compliance & Ratings: EPA and CARB certified; meets CARB 13 CCR 2235 and ISO 13331 nozzle retention standards. Fully compatible with ethanol-blended fuels.
Measurements & Dimensions
-
Fill Hose Compatibility: Fits 1-1/2-inch fill hose.
-
Automatic Nozzle Shutoff Flow Rate: 4 to 18 gpm
-
Product Weight: 0.75 lbs
-
Package Shipping Dimensions: Store default cube — 6 × 6 × 6 inches (Package weight: 4 oz)
Key Features & Design
-
Diurnal Emission Control: Dual 1 psi overpressure relief safety valves built directly into the deck fill cap safely vent tank pressure.
-
Airflow Management: High-flow vacuum valves allow fresh air to enter the fuel tank to replace consumed fuel.
-
Refueling Efficiency: Designed to prevent spit-back and well-back during refueling, supporting both Jerry Can and marine nozzle methods while blocking water intrusion.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Quick Guide (pdf)
