Perko Stealth Series - LED Horizontal Mount Bi-Color Light [0615DP2STS]

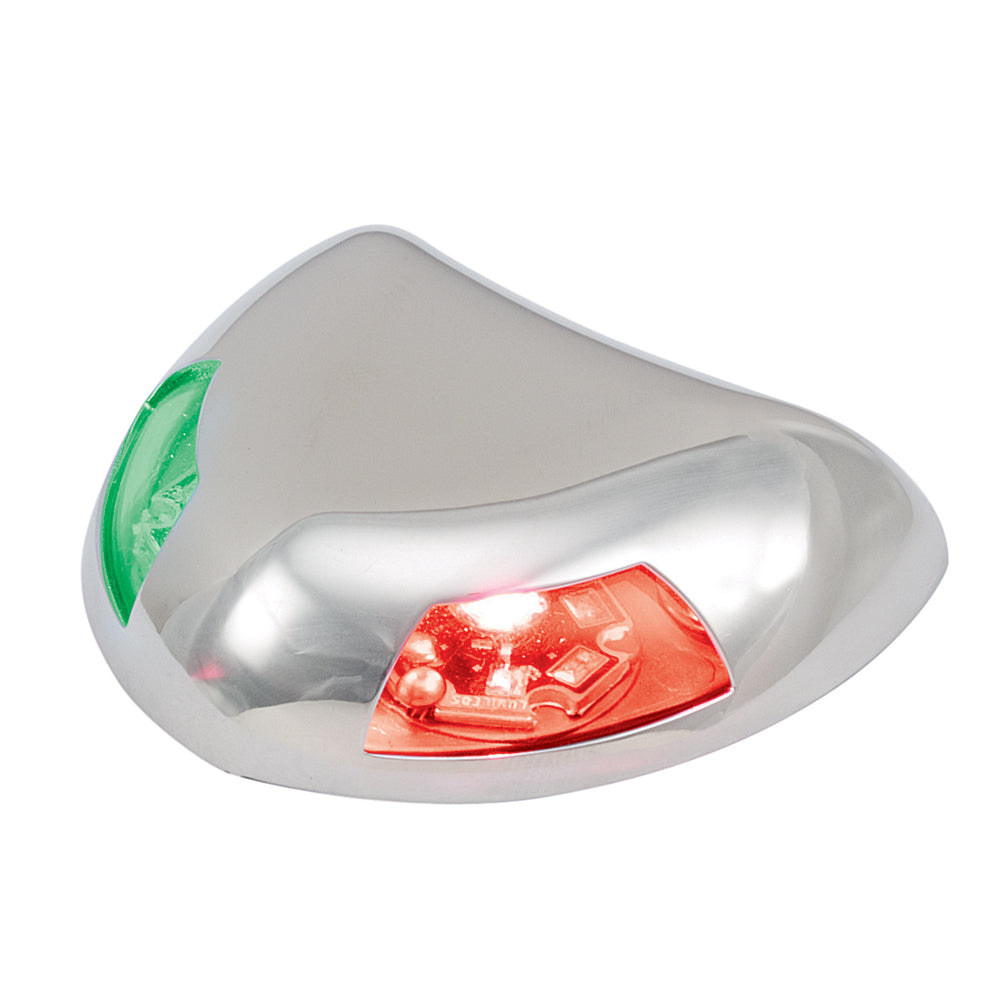

Stealth Series - LED Horizontal Mount Bi-Color Light

Measurements & Dimensions

• Height: 5/8 inch

• Length: 2-1/2 inches

• Width: 2-5/8 inches

• Fastener / Screw Size: #8 screws

• Shipping Box Dimensions: 3 inches H × 7 inches W × 9 inches L

• Item / Package Weight: 0.65 lbs

Specifications & Materials

• Model / MPN: 0615DP2STS (Perko Figure No. 0615 Series — LED Stealth II Series)

• Material Construction: Polished stainless steel top cover with an ultra-low-profile, self-contained LED design

• Certification & Visibility: Certified for use on power-driven vessels under 20 meters (65.6 feet) in length with a 2-mile visible range (Red/Green lens configuration)

• Electrical Ratings:

  • Voltage: 12 Volt DC LED

  • Wattage: 3.75 watts

  • Amperage Draw: Less than 0.25 amps

  • Energy Efficiency: Uses approximately 10% of the energy draw of standard incandescent lights, featuring low heat output and long operational life

Specifications:

• Box Dimensions: 3"H x 7"W x 9"L WT: 0.65 lbs


Quick Guide (pdf)
