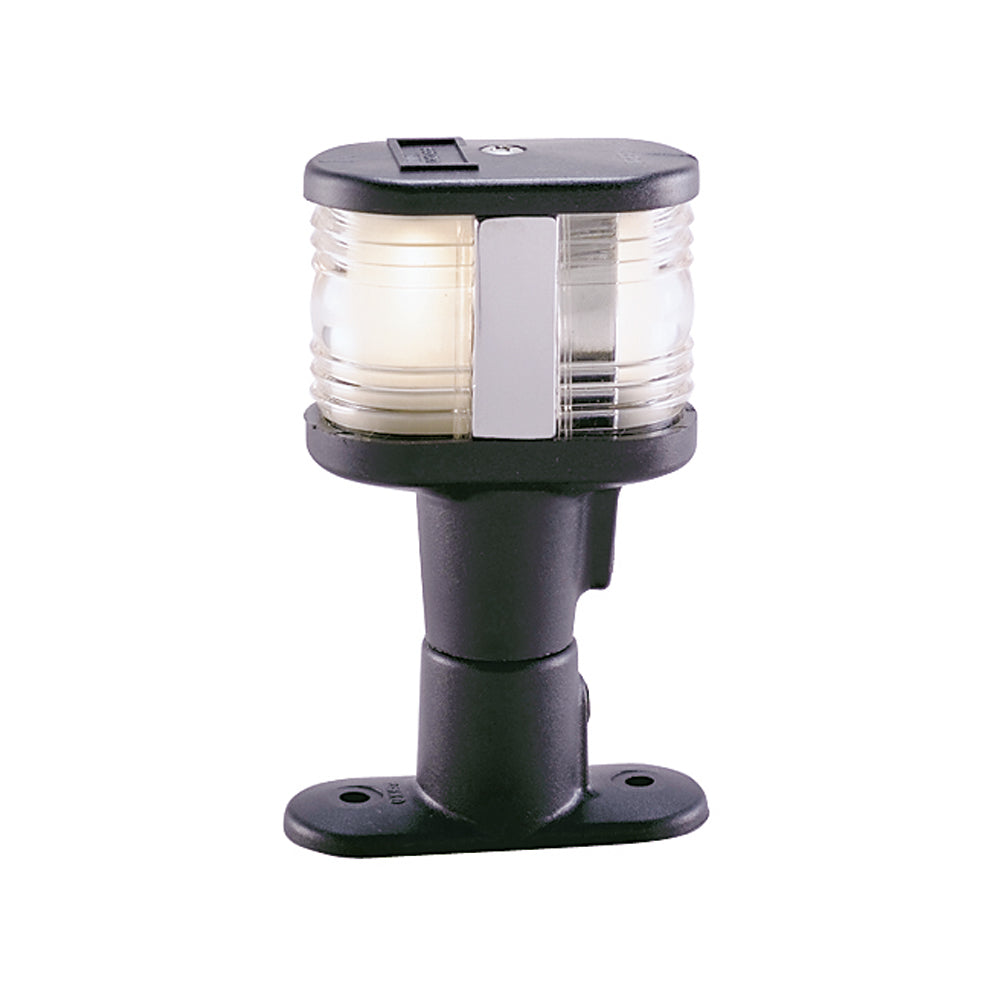

Perko Fixed Mount Combo Masthead All-Round Anchor Light - 3-3/16"H - 12VDC [1183DP0CHR]

Fixed Mount Combination Masthead / White All-Round Light

Measurements & Dimensions

• Vertical Height: 3-3/16 inches

• Overall Height: 4 inches

• Pole Diameter: 3/4 inch anodized aluminum tube

• Base Dimensions: 1 inch × 2-5/8 inches

• Fastener Screw Size: #8 screws

• Box / Packaging Dimensions: 2 inches H x 4 inches W x 7 inches L (Weight: 0.4 lbs)

Specifications & Materials

• Model / MPN: 1183DP0CHR (Perko Figure No. 1183 Series)

• Light Type: Fixed mount combination masthead (forward-facing) and white all-round (anchor) light

• Certification: Certified for use on sail or power-driven vessels under 20 meters (65.6 feet) in length (USCG 3-Mile / 3nm certified)

• Materials: Black polymer base with a black polymer and chrome-plated zinc alloy top, featuring a 3/4-inch diameter anodized aluminum tube and gold-plated electrical contacts

• Electrical Ratings: 12 Volt system (includes two bulbs, 10 watts / 0.80 amps per compartment)

• Replacement Parts:

  • Bulbs (2 per card): Perko 0071DP0CLR

  • Lenses (2 per card): Perko 0278DP0WHT

  • Top Cap and Screw: Perko 1158DP0BLK

Specifications:

• LED: No
• Box Dimensions: 2"H x 4"W x 7"L WT: 0.4 lbs

Quick Guide (pdf)
