Perko 3/4" IPS Intake Strainer Bronze Made in the USA [0493005PLB]

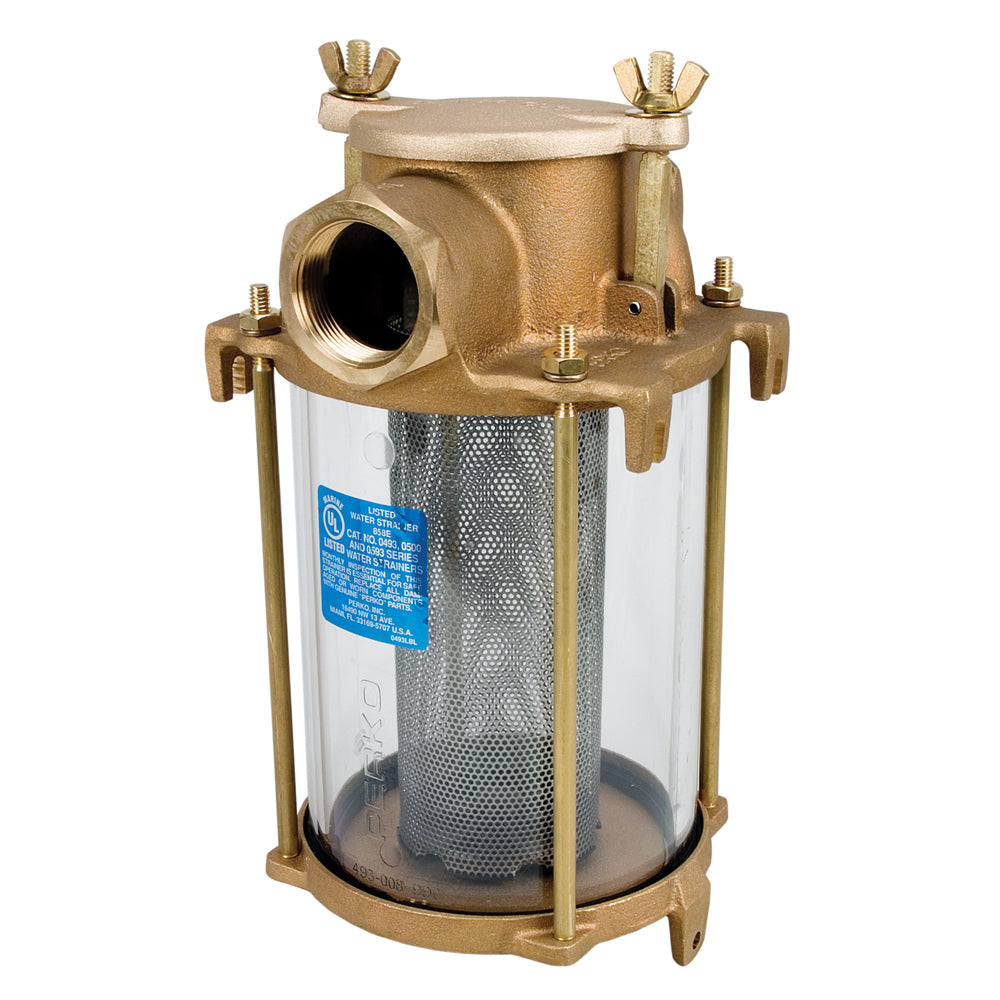

Perko 3/4" IPS Intake Strainer Bronze
PERKO Intake Strainer are designed for easy installation and cleaning.
Features include mounting lugs cast into both sides to assure universal mounting, four outside tie rods and a 316 stainless steel strainer basket to minimize electrolysis. Screen hole diameter .077 inches, 46% open area. Hinged lugs for the cast bronze cover permit easy removal and cleaning of the strainer basket. A drain plug in the bottom casting is provided for
easily removing sediment and draining for winterizing.

Technical Measurements & Dimensions

• Pipe Size: 3/4 inch (IPS)

• Overall Height: 8-3/8 inches

• Overall Width: 4-1/2 inches

• Clear Cylinder Dimensions (Outer Diameter × Height): 3-1/2 inches × 6 inches

• Strainer Basket Dimensions (Outer Diameter × Height): 1-13/16 inches × 6-1/4 inches

• Open Area to Pipe Size Ratio: 25:1

• Screen Hole Diameter: 0.077 inches (approx. 46% open area)

• Shipping Weight: 5.0 lbs

Materials & Construction Features

• Cast Bronze Body: Heavy-duty marine-grade bronze designed for durability and longevity in harsh marine environments.

• Strainer Basket: 316 Stainless Steel basket engineered to minimize electrolysis.

• Universal Mounting Lugs: Cast directly into both sides of the unit for secure, flexible installation options.

• Frame Layout: Features four outside tie rods and a hinged cast bronze cover with swing lugs to allow quick, easy removal and cleaning of the internal basket.

• Drain Plug: Included in the bottom casting to make clearing out trapped sediment and winterizing straightforward.

• Maintenance Parts: Uses Spare Gasket Kit model 0493DP599M (or 99R). (Note: Spare parts for this model are not interchangeable with the Perko 0593 Flushing Strainer).
